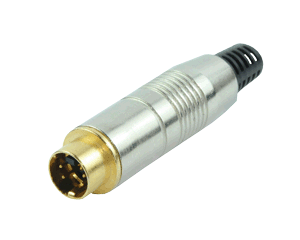

Miniature DIN Circular Assembly plug A-2004



  • A-2004-4P
  • Front View
  • Side View

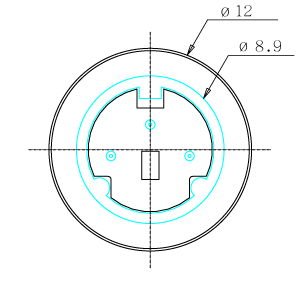

A2004 Front View

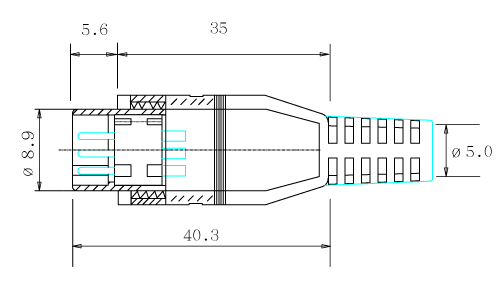

A2004 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 0.59D R-35 Silver PTD
    Metal Body: Diecast Nickel
    Hex Nut: Diecast Nickel
    Cap: BSR-H 0.3t C2680 (65/35) Nickel
    Plastic Trail: PVC
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Solder Type
    3~8 Pin



  • Substitute Items





  • Mating Items
