Miniature DIN Circular Assembly plug A-9005



  • A-9005
  • Side View

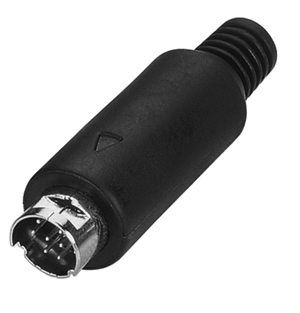

A9005

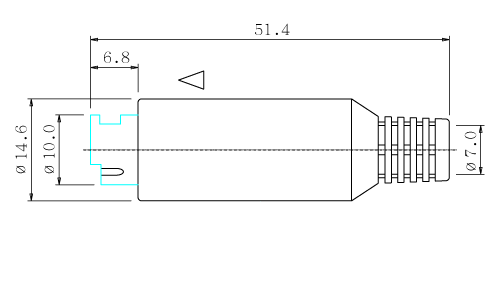

A9005 Side View



  • Specifications
    Plastic Core: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.59D R-35 Silver PTD
    Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Plastic Body: EVA UE633
    Clip Ring: BSR-H 0.8t Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Solder Type
    Assembly
    9 Pin




  • Substitute Items
    A-9006
    A-9009





  • Mating Items
    A-1005
    A-1006
    A-2002
    A-3005
