Miniature DIN Circular Assembly plug Quick Lock A-9008



  • A-9008
  • Front View
  • Side View

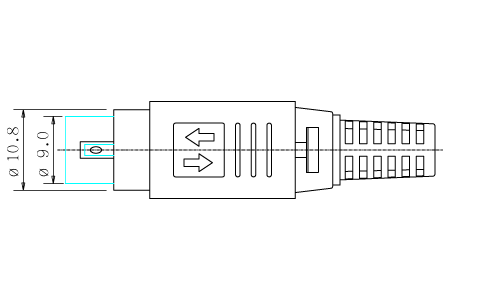

  • Top View

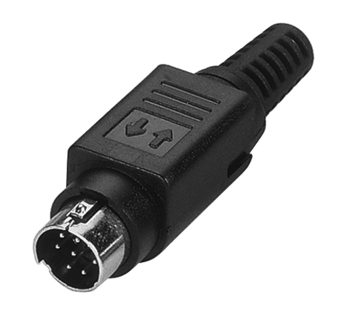

A9008

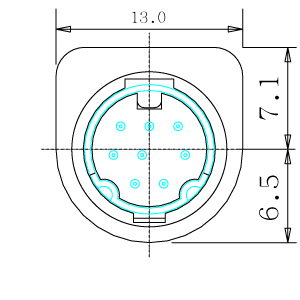

A9008 Front View

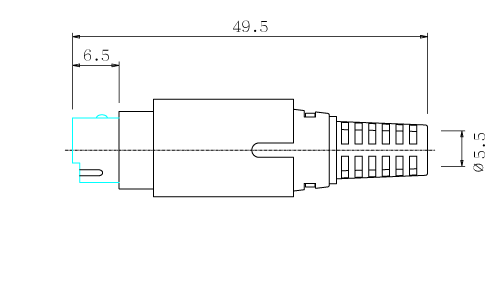

A9008 Side View
A9008 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BSR-H 0.59D R-35 Silver PTD
    Slide Ring: TEPCON M90 UL94V2
    Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Lock Piece: BSR-H 0.4t C2680 (65/35) Nickel
    Plastic Body: ABS PA-777D HB94
    Spring: SW-C 0.6D Stain
    Back Body: ABS PA-777D HB94
    Plastic Trail: PVC
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Quick Lock
    Solder Type
    Assembly
    Moulded Solded Type
    3~8 Pin
  • Substitute Items





  • Mating Items
    A-1007
    A-1010
    A-1013
    A-1014
