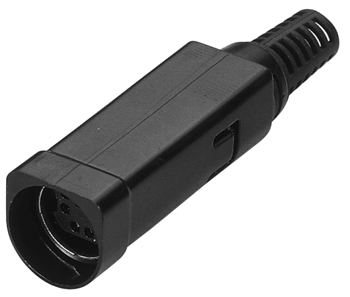

Miniature DIN Circular Assembly Jack A-2003



  • A-2003-6P
  • Front View
  • Side View
A2003

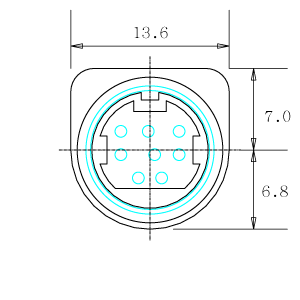

A2003 Front View

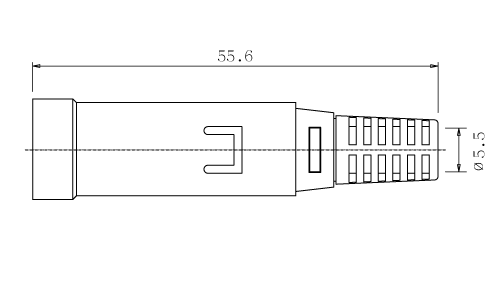

A2003 Side View



  • Specifications
    Plastic Core: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Plastic Body: Nylon 101F NC010 UL94V2
    Plastic Trail: PVC
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Solder Type
    Assembly
    Quick LocK
    4~8 Pin

  • Substitute Items





  • Mating Items
    A-9007
