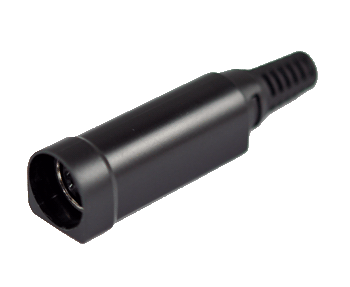

Miniature DIN Circular Assembly Jack A-2006



  • A-2006
  • Front View
  • Side View
A2006 Front View
A2006 Side View



  • Specifications
    Plastic Core: ABS PA-777D 94HB
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Main Body: BSR-H 0.4t C5191 (PBP) Nickel
    Plastic Lining: ABS PA-777D 94HB
    Plastic Housing: EVA UE633
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Solder Type
    Quick Lock
    Assembly
    3~8 Pin

  • Substitute Items





  • Mating Items
    A-9008
