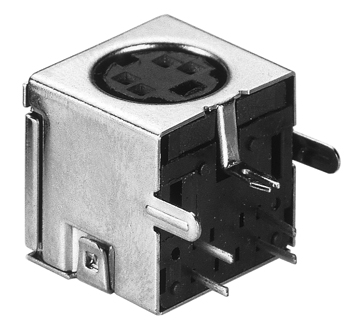

Miniature DIN Circular Horizontal Socket A-1013



  • A1013-4P
  • Front View
  • Side View
A1013
A1013 Front View

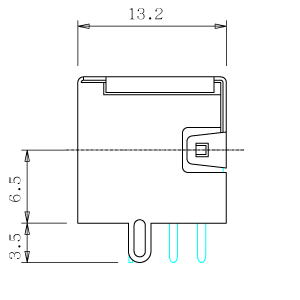

A1013 Side View



  • Specifications
    Plastic Body: PBT D202G15 UL94
    Plastic Base: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Metal Housing: BSR-H 0.3t C2680 (65/35) Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.6Kg~3Kg
  • Characteristics
    Right angle
    Snap-in fit terminal
    PCB mount
    Quick lock
    3~8 Pin
  • Substitute Items
    A-1007
    A-1014



  • Mating Items
    A-9001
    A-9003
    A-9008
