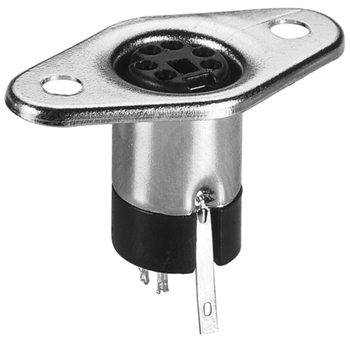

Miniature DIN Circular PMT Socket A-3002



  • A-3002-6P
  • Front View
  • Side View
A3002

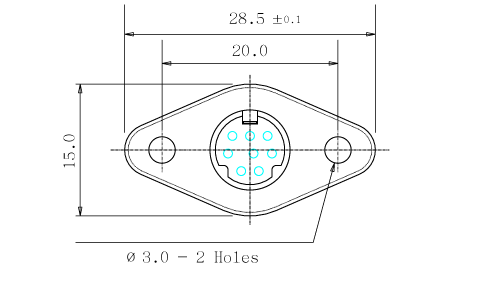

A3002 Front View

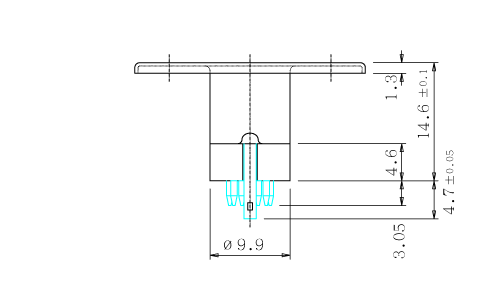

A3002 Side View



  • Specifications
    Metal Body: JIS G3141 SPCC-SD 0.4t Nickel
    Plastic Core: ABS PA-777D HB94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.6Kg~3Kg
  • Characteristics
    Solder
    Vertical
    3~8 Pin


  • Substitute Items
    A-3001




  • Mating Items
    A-9001
    A-9003
