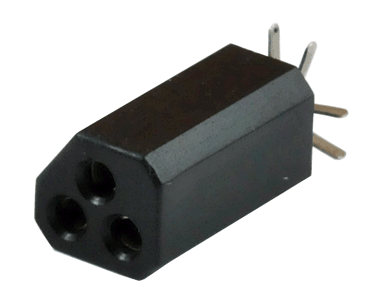

DC Power Jack H-2005
- H-2005-3P

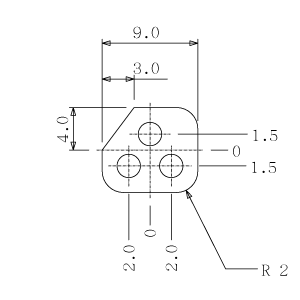

- Front View
- Side View
-
Specifications Main Body: PBT D202G16 UL94 Contact Terminal: BSR-H 0.25t C1619R-H Silver PTD Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: Pin No. 1~3: 12V DC 5A Pin No. 4: 12V DC 1A -
Characteristics Crimping Type 3 Pin -
Substitute Items -
Mating Items H-7005
