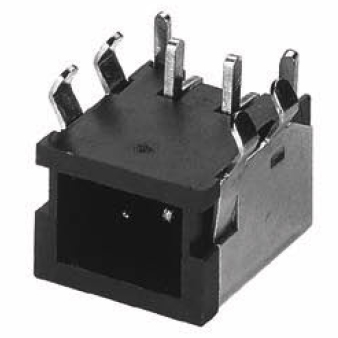

DC Power Horizontal Socket A-1016



  • A-1016-4P
  • Front View
  • Side View
  • Layout
A2004

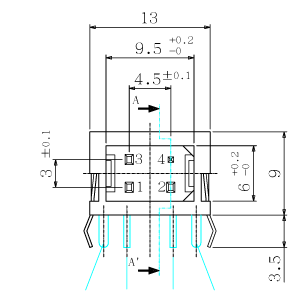

A1016 Front View

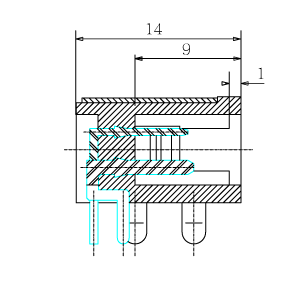

A1016 Side View

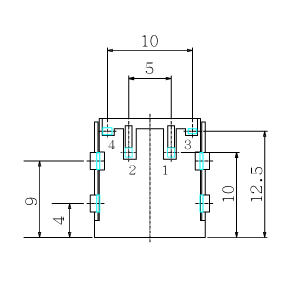

A1016 Bottom View



  • Specifications
    Main Body: PBT 94V-0-15U
    Contact Terminal: 0.8t Thick Brass
    Cover: 0.4t Thick Steel
    Rating: Pin No. 1~3: 12V DC 5A
    Pin No. 4: 12V DC 1A
    Dielectric Strength: 250V AC/1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
