Circular DIN PCB Horizontal Socket B-1006



  • B-1006-8P
  • Front View
  • Layout
B1006

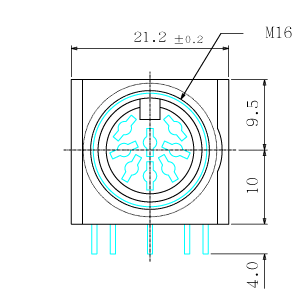

B1006 Front View

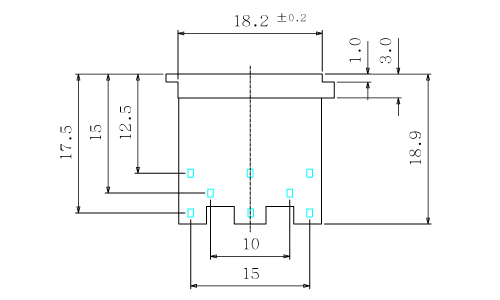

B1006 Bottom View



  • Specifications
    Main Body: ABS PA-777D UL94
    Base: PBT D202G15 UL94
    Contact Terminal: BSR-1/2H 0.7t pb 10% sn 90%
    Earth Terminal: BSR 0.25t pb 10% sn 90%
    Terminal: BSR 18X2.25 Nickel
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Right angle
    Snap-in fit terminal
    PCB mount
    3~8 Pin

  • Substitute Items





  • Mating Items
    B-9001
    B-9002
    B-9099
