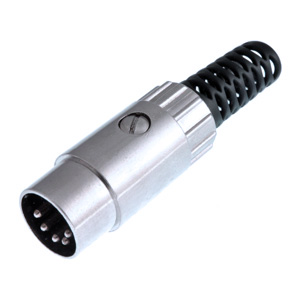

Metal Circular DIN Assembly Plug B-9099
- B-9099-5P

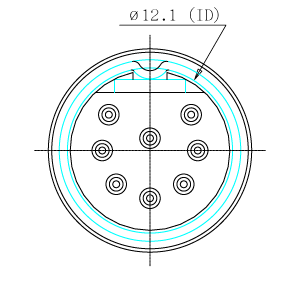

- Front View

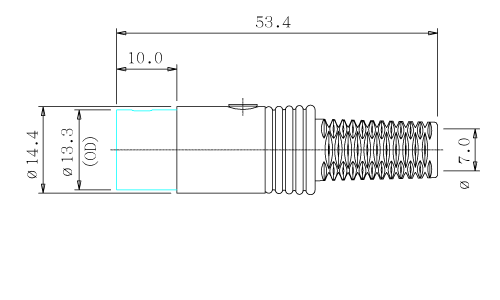

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5D R-35 Silver PTD Main Body: Diecast Nickel Clip Plate: BSR-H 0.8t Nickel Plastic Trail: PVC Screw: 2AAR1050 9M3X0.5L=10.2 Nickel Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Metal Cover Assembly 3~8 Pin -
Substitute Items -
Mating Items B-3099
