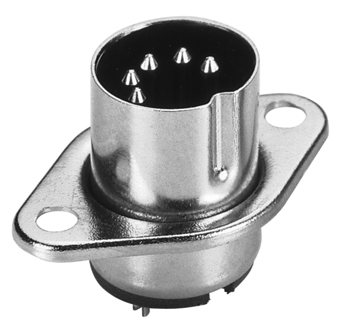

Metal Circular DIN PMT Socket B-2004
- B-2004-5P

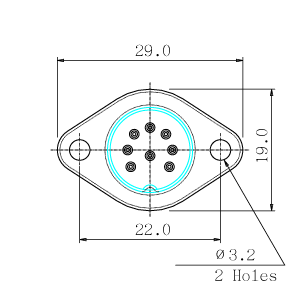

- Top View

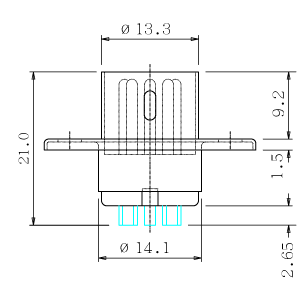

- Front View
-
| Specifications |
| Contact Resistance: |
20mΩ Max. |
| Dielectric Strength: |
1000V AC / 1 Minute |
| Insulation Resistance: |
100MΩ Min. at 500V DC |
| Rating: |
100V AC 2A |
| |
-
| Characteristics |
| Metal Cover |
| Solder Type |
| 3~8 Pin |
| |
| |
-
-
