Miniature DIN Circular Molding Plug C-5002



  • C-5002-8P
  • Front View
  • Side View
C5002

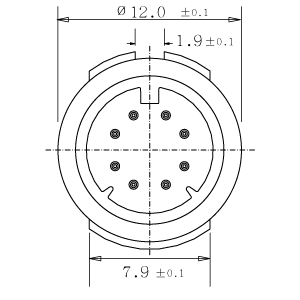

C5002 Front View

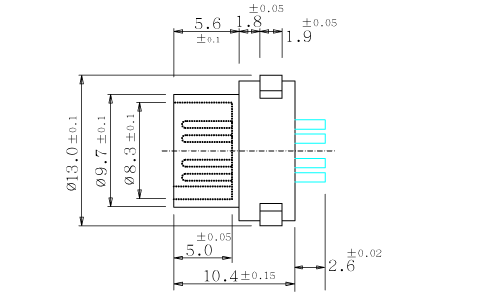

C5002 Side View



  • Specifications
    Main Body: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 0.59d R-35 Silver PTD
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Solder Type
    8 Pin



  • Substitute Items
    C-5003




  • Mating Items
    C-5098
