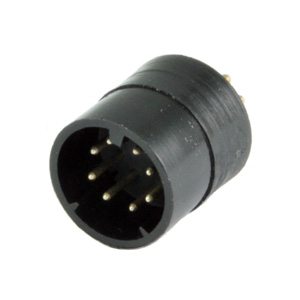

Miniature DIN Circular Molding Plug C-5003
- C-5003-8P

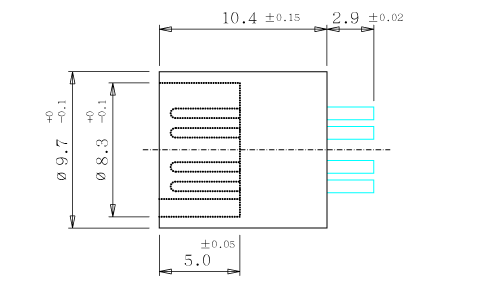

- Side View
-
Specifications Main Body: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.59d R-35 Silver PTD Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Solder Type 8 Pin -
Substitute Items C-5002 -
Mating Items C-5098
