Multipole Circular Molding Plug C-6004



  • C-6004-14P

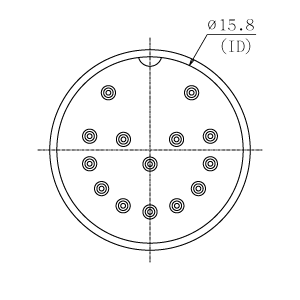

  • Front View

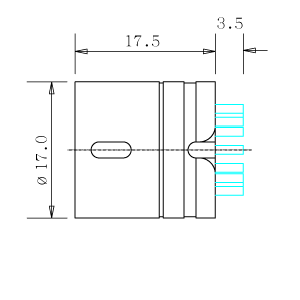

  • Top View
C6004
C6004 Front View
C6004 Side View



  • Specifications
    Main Body: BSR-H 0.6t C2680 (65/35) Nickel
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 0.8d R-35 Silver PTD
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Solder Type
    14 Pin



  • Substitute Items





  • Mating Items
    C-6098
