DC Power Plug D-2004



  • D-2004
  • Front View
  • Side View

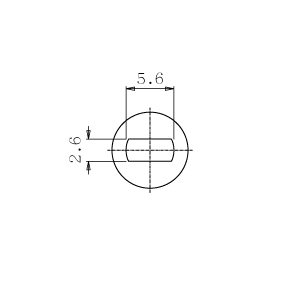

  • Back View
D2004

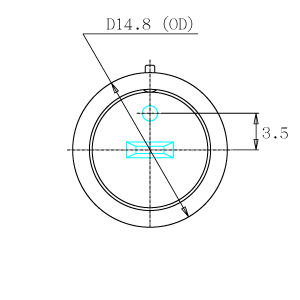

D2004 Front View

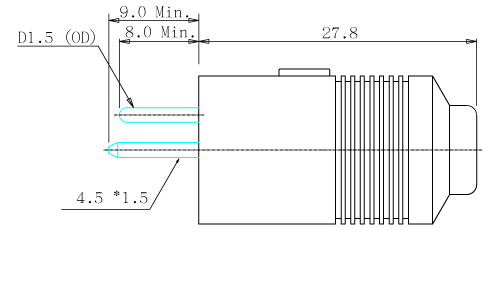

D2004 Side View
D2004 Side View



  • Specifications
    Contact Terminal: BSR-H 1.52t C2680 (65/35) Silver PTD
    BSR-H 1.46d R-35 Silver PTD
    Plastic Core: Nylon 101F NC010 UL94V2
    Plastic Body: EVA UE633 UL94
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 12V DC 2A Max.
  • Characteristics
    Solder Type
    Straight Type
    2 Pin


  • Substitute Items





  • Mating Items
    D-2097
