Multi-Pole Cable Plug Rectangular D-6001



  • D-6001-5P
  • Front View
  • Top View 1
  • Top View 2

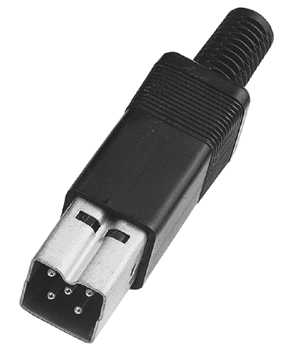

D6001

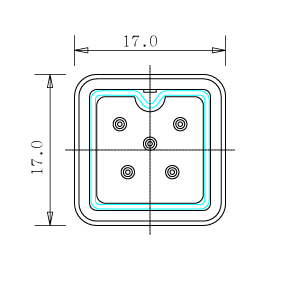

D6001 Front View

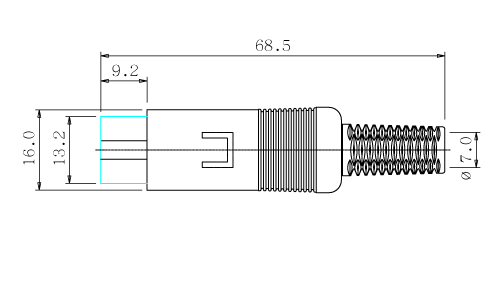

D6001 Top View 1

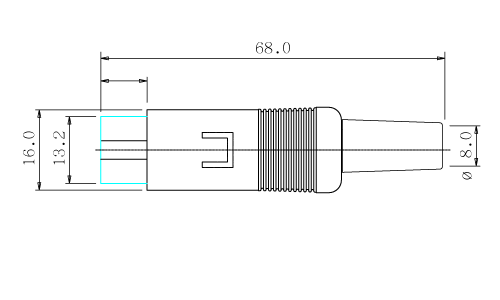

D6001 Top View 2



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 1.5d R-35 Silver PTD
    Cover: BSR-H 0.5t C2680 (65/35) Nickel
    Plastic Body: Nylon 101F NC010 UL94V2
    Plastic Trail: PVC
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 12V DC 2A Max.
  • Characteristics
    Solder Type
    Straight Type
    5 Pin


  • Substitute Items





  • Mating Items
    D-6096
    D-6097
