Multi-Pole Circular DIN Plug R/A D-6002



  • D-6002-13P
  • Top View
  • Side View

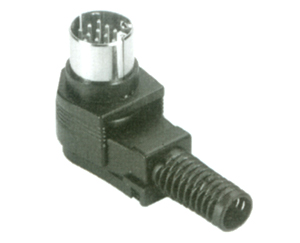

D6002

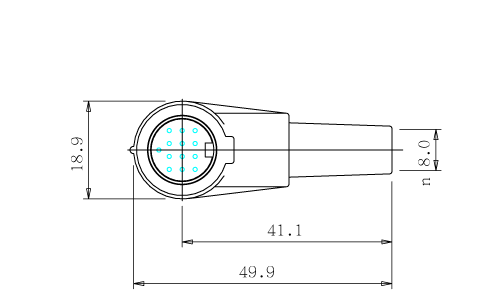

D6002 Top View

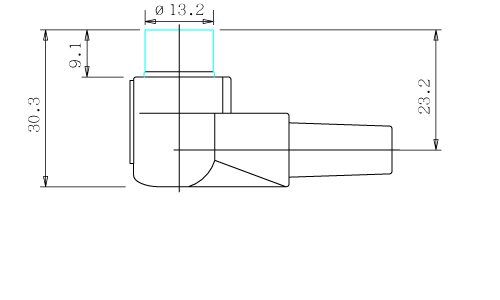

D6002 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 0.8d R-35 Silver PTD
    Cover: BSR-H 0.5t C2680 (65/35) Nickel
    Plastic Body: Nylon 101F NC010 UL94V2
    Plastic Trail: PVC
    Contact Rating: 12V DC 1A Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Leakage resistance: 100000mΩ
  • Characteristics
    Solder Type
    Right Angle
    13 Pin


  • Substitute Items





  • Mating Items
    D-1090
    D-1091
    D-6099
    D-6095
