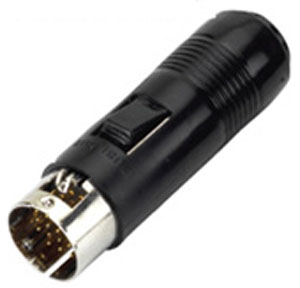

Multi-Pole Circular Assembly Plug D-6010



  • D-6010-20P
  • Front View
  • Side View
D6010

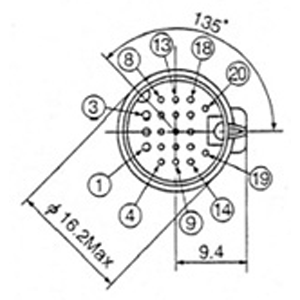

D6010 Front View

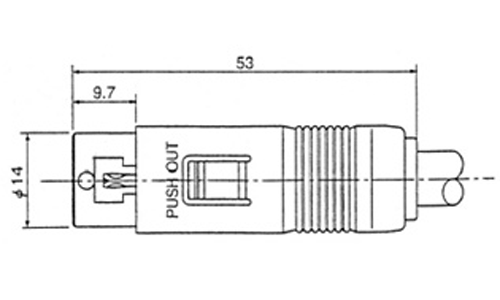

D6010 Side View



  • Specifications
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.6Kg~3Kg
  • Characteristics
    Solder Type
    Quick Lock
    20 Pin




  • Substitute Items







  • Mating Items
    D-6100
