XLR Microphone PMT Socket F-1501

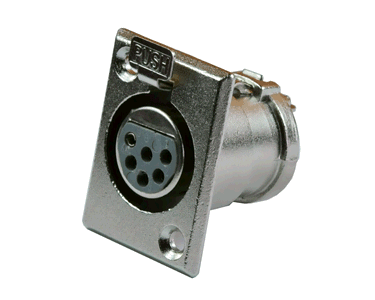

  • F-1501-6P

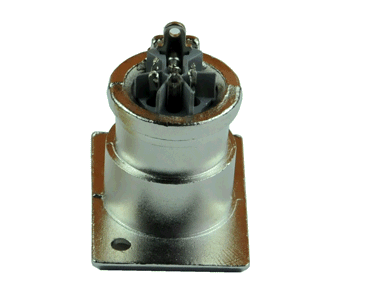

  • Rear View

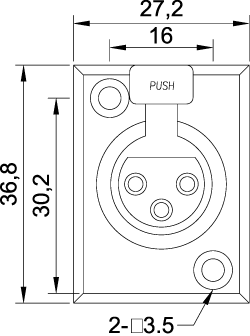

  • Front View
  • Side View
F1097



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BHR-H 1.5d R-35 Silver PTD
    Main Body: Diecast Nickel
    Electrical:

    Contact Rating:

    3 contact 15 @ 125VAC

    4 contact 10 @ 125VAC

    5 contact 7.5 @ 125VAC

    7 contact 5 @125VAC



    Contact Resistance:

    5 Milliohms Max.



    Insulation Resistance:

    5000 Megohms Min.



    Dielectric Strength:

    1400VAC



    Capacitance:

    3 Contact 4pF Max.

    4 Contact 7pF Max.

    5 Contact 7pF Max.

    7 Contact 9pF Max.

    Mechanical Insertion Force: 1.0~8.0 Kg Withdrawal Force: 1.0~1.8 Kg
    Environmental: Operating Temperature: -55°C ~ +70°C
  • Characteristics





  • Substitute Items





  • Mating Items
    F-9001
    F-9003
