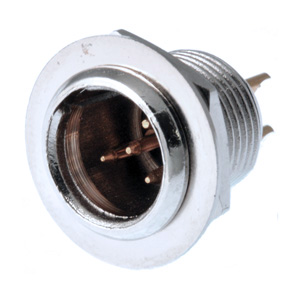

XLR Miniature Microphone PMT Male Socket F-1101



  • F-1101-4P
  • Front View
F1001
F1001 Front View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BHR-H 1.5d R-35 Silver PTD
    Main Body: Diecast Nickel
    Electrical:

    Contact Resistance:≦3mΩ

    Insulatioin Resistance - initial: ﹥2TΩ

                -after damp heat test: ﹥1TΩ

    Dielectric strength: 1.5kV dc

    Cable Shield-Shell Connection: Choosable

    Shielding effectiveness: ﹥55dB @ 1.3GHz

    Rated Current Per Contact @ 35℃

    - 3 pole: 16A

    - 4 pole: 10A

    - 5 pole: 7.5A

    Capacitance Between Contacts:

    - 3 pole: ≦4pF

    - 4, 5 pole: ≦7pF

    Rated Voltage: 50 V ac

    Mechanical

    Lifetime: ﹥1000 cycles

    Insertioni/ Withdrawal Force: ≦20N

    Cable O.D. Range: 3.5~8.0mm

    Max. Wire Size:      - 3 pole: 2.5m㎡ /AEG14

                                - 4 pole: 1.5m㎡ /AEG16

                                - 5 pole: 1.0m㎡ /AEG18

    Environmental:

    Operating Temperature: -30°C ~ +80°C

    Flammability: UL 94 HB

    Protection Class: IP40

    Solderability Complies With IEC: 68-2-20

    Manufacturing Standard IEC 61076-2-103

  • Characteristics





  • Substitute Items
    F-9101




  • Mating Items
    F-2101
