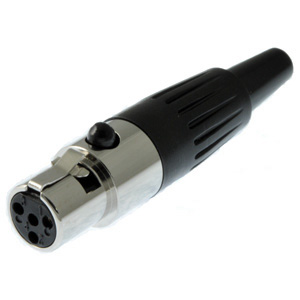

XLR Miniature Microphone Jack F-2101



  • F-2101-4P
  • Front View
  • Side View
F1001
F1001 Front View
F1001 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BHR-H 1.5d R-35 Silver PTD
    Main Body: Diecast Nickel
  • Electrical:
    Contact Resistance ≦3mΩ
    Insulatioin Resistance initial: ﹥2TΩ
    After Damp Heat Test ﹥1TΩ
    Dielectric strength 1.5kV dc
    Cable Shield-Shell Connection Optional
    Shielding effectiveness ﹥55dB @ 1.3GHz
    Rated Current Per Contact @ 35℃ 3 pole: 16A
    4 pole: 10A
    5 pole: 7.5A
    Capacitance Between Contacts 3 pole: ≦4pF
    4, 5 pole: ≦7pF
    Rated Voltage 50 V ac
  • Mechanical
    Lifetime ﹥1000 cycles
    Insertion~Withdrawal Force ≦20N
    Cable O.D. Range 3.5~8.0mm
    Max. Wire Size 3 pole: 2.5m㎡ /AEG14
    4 pole: 1.5m㎡ /AEG16
    5 pole: 1.0m㎡ /AEG18
    Environmental: Operating Temperature: -30°C ~ +80°C
    Flammability: UL 94 HB
    Protection Class: IP40
    Solderability Complies With IEC: 68-2-20
    Manufacturing Standard IEC 61076-2-103

  • Characteristics





  • Substitute Items





  • Mating Items
    F-9101
