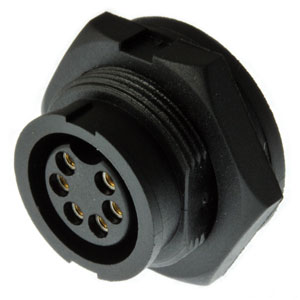

Weathertight Circular Plastic Female Receptacle HWC-1501



  • HWC-1501-6P
  • Top View
  • Side View
HWC-1501



  • Specifications
    Applications: Marine Electronic Devices
    Telecommunications
    Industrial Electrical Applications
    CCTV
    Security Monitor System
    GPS
    Robot
    Lighting System
    Connector Body: Nylon + GE, UL Recognized
    Female Pin I: Brass with Ni PTD / 6μ " Gold PTD
    Female Pin II: Phosphor Bronze with 30μ " Gold PTD
    Waterproof: IP65, IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10mΩ
    Insulation Resistance: ≥100mΩ at DC 500V
    Current Rating: 2A, 5A, 10A, 20A
    Breakdown Voltage: ≥ AC 1000V / 1 Minuute, ≥ 500V / 1 Minute (1.5A~5A)
    Environmental Specification: 48 Hours Salt Spray Contact
    Durability: 3000 Plug / Unplug Cycles Minimum
  • Characteristics
    Solder Type




  • Substitute Items





  • Mating Items
    HWC-9001
    HWC-9002
