Weathertight Circular Plastic Female Cable Jack HWG-2001

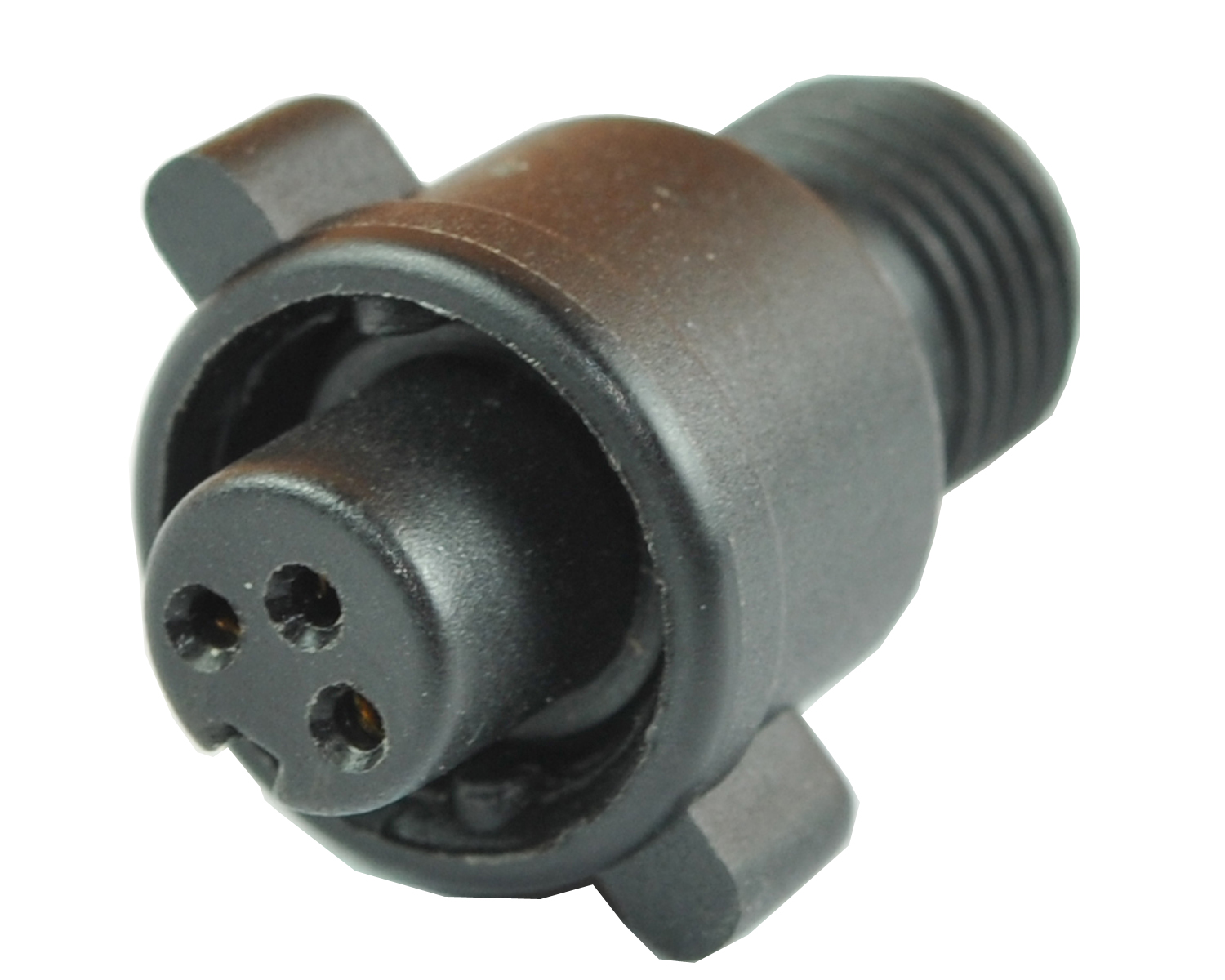

  • HWG-2001-3P
  • Side View
HWG-2001



  • Specifications
    Applications: Marine Electronic Devices
    Telecommunications
    Industrial Electrical Applications
    CCTV
    Security Monitor System
    GPS
    Robot
    Lighting System
    Main Body: Nylon + GF 70G33L HB
    Contact Terminal: Brass with Ni Plared / 6μ " Gold PTD
    Ring: EPDM Brown EP70
    Lock Nut: Nylon + GF 70G33L HB
    Waterproof: IP65, IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10mΩ
    Insulation Resistance: ≥100mΩ at DC 500V
    Current Rating: 5A, 10A
    Breakdown Voltage: ≥ AC 1000V / 1 Minuute, ≥ 500V / 1 Minute (1.5A~5A)
    Environmental Specification: 48 Hours Salt Spray Contact
    Durability: 3000 Plug / Unplug Cycles Minimum
  • Characteristics
    Solder Type




  • Substitute Items




  • Mating Items
    HWG-1001
