Weathertight Circular Plastic Assembly Jack HWF-2001



  • HWF-2001-4P
  • Top View

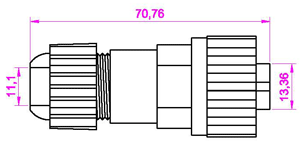

  • Side View
HWF-2001



  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Workshop
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Plastic Core: Nylon 30% Glass Filled
    Contact Terminal: Brass, 6 micron Gold PTD
    Lock Nut: Nylon + GF 70G33L HB
    Waterproof: IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10 mΩ
    Insulation Resistance: ≥100MΩ at DC 500V
    Current Rating: 20A
    Breakdown Voltage: ≥ AC 500V / 1 Minute
  • Characteristics
    Solder Type
    2~8 Pin



  • Substitute Items
    HWF-2002




  • Mating Items
    HWF-1001
    HWF-1003
    HWF-1005
