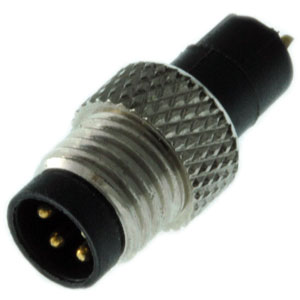

Waterproof Sensor Male Plug M8 HWR-9501



  • HWR-9501-4P

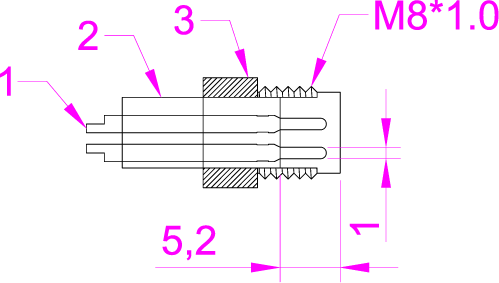

  • Side View
HWR-9501
HWR-2501 Side View



  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Plastic Body: ABS PA-777D
    Plastic Core: ABS PA-777D
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Cap: BSR-H 0.3t C2680 (65/35) Nickel
    Waterproof: IP67
    Contact Resistance: 30mΩ Max.
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Metal Screw
    3~5 Pin



  • Substitute Items





  • Mating Items
    HWR-1551
    HWR-2501
