Waterproof Sensor Male Receptacle A-CODE M12 HWT-1051



  • HWT-1051-5P
  • Top View
  • Side View

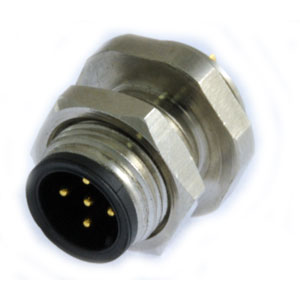

HWT-1051

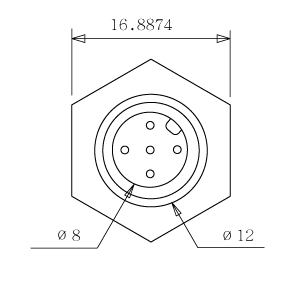

HWT-1051 Top View

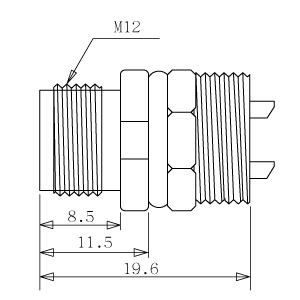

HWT-1051 Side View



  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Metal Body: Brass
    Plastic Core: Nylon 30% Glass Filled
    Contact Terminal: Brass, 6 micron Gold PTD
    Ring: EP70
    Lock Nut: Stainless Steel 316A/A2
    Waterproof: IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10 mΩ
    Insulation Resistance: ≥100mΩ at DC 500V
    Current Rating: 2A, 5A
    Breakdown Voltage: ≥ AC 500V / 1 Minute
  • Characteristics
    Solder Type
    Metal Screw
    2/3/4/5/8 Pin


  • Substitute Items
    HWT-1052




  • Mating Items
    HWT-2001
