Waterproof Sensor Female Jack A-CODE M12 HWT-2501



  • HWT-2501-7P
  • Side View

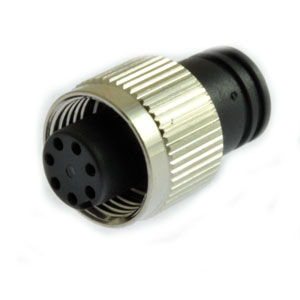

HWT-2501
HWT-2501 Side View



  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Plastic Core: Nylon 30% Glass Filled
    Contact Terminal: Brass, 6 micron Gold PTD
    Ring: EP70
    Lock Nut: Stainless Steel 316A/A2
    Waterproof: IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10 mΩ
    Insulation Resistance: ≥100mΩ at DC 500V
    Current Rating: 2A, 5A
    Breakdown Voltage: ≥ AC 500V / 1 Minute
  • Characteristics
    Metal Screw
    3~8 Pin



  • Substitute Items
    HWT-2001




  • Mating Items
    HWT-9501
