Waterproof Sensor Adapter A-CODE M12 HWT-5501

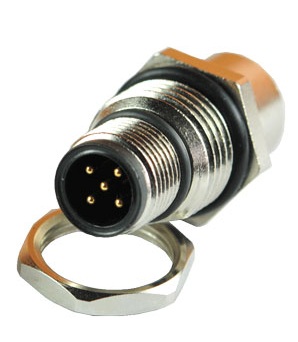

  • HWT-5501-5P

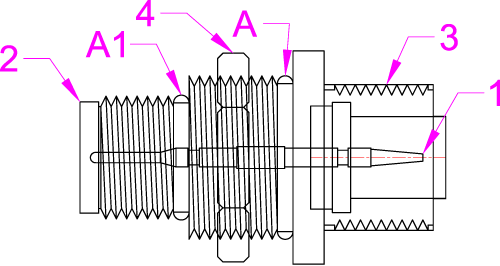

  • Side View
HWT-2501
HWT-2501 Side View



  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Plastic Core: ABS PA-777D
    Contact Terminal: Brass, 6 micron Gold PTD
    Waterproof: IP66, IP67, IP68
    Temperature Range: Connector Body -40°C to +105°C
    Contact Resistance: ≤10 mΩ
    Insulation Resistance: ≥100mΩ at DC 500V
    Current Rating: 2A, 5A
    Breakdown Voltage: ≥ AC 500V / 1 Minute
  • Characteristics
    Metal Screw
    2~8 Pin



  • Substitute Items





  • Mating Items
    HWT-2501
    HWT-9501
