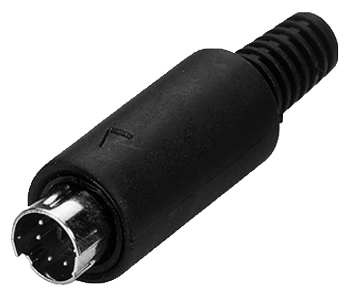

Miniature DIN Circular Assembly plug A-9002



  • A-9002

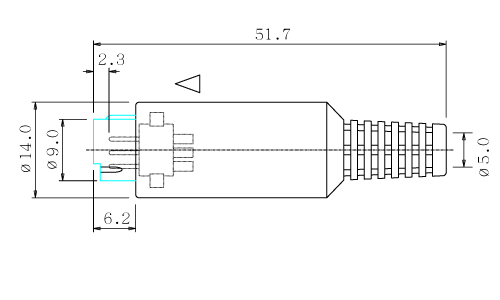

  • Side View
A9002 Side View



  • Specifications
    Plastic Core: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.59D R-35 Silver PTD
    Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Plastic Lining: ABS PA-777D UL94
    Main Body: EVA UE633
    Clip Ring: BSR-H 0.8t Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Solder Type
    Assembly
    3~8 Pin


  • Substitute Items
    A-9001
    A-9003



  • Mating Items
    A-1001
    A-1002
    A-1008
    A-3001
    A-3002
